TB6612FNG(O,C,8,EL
Dual H-bridge driver controls brushed DC motors with forward, reverse, short-brake, and stop modes.
- Manufacturer
- Toshiba
- Product type
- Dual brushed DC motor driver
- Package
- SSOP24-P-300-0.65A (24-pin)
In stock
- Available quantity
- 26,088 PCS
- Shipment from
- HONG KONG
Third-party escrow supported
60-day warranty from delivery
Request a quote
Send your requirements for a quote.
TB6612FNG(O,C,8,EL
Dual H-bridge driver controls brushed DC motors with forward, reverse, short-brake, and stop modes.
| Manufacturer |
Toshiba |
|---|---|
| Product type |
Dual brushed DC motor driver |
| Package |
SSOP24-P-300-0.65A (24-pin) |
| Motor outputs |
2 H-bridges |
| Control modes |
Forward / reverse / brake / stop |
| Output current rating |
1.2 A average; 3.2 A peak (absolute maximum) |
🚚 Free shipping on U.S. orders of $100 or more
For orders under $100, shipping costs $8–$20
Details
Ships from U.S. warehouse (City of Industry, CA)
Product Attributes
Product Attributes

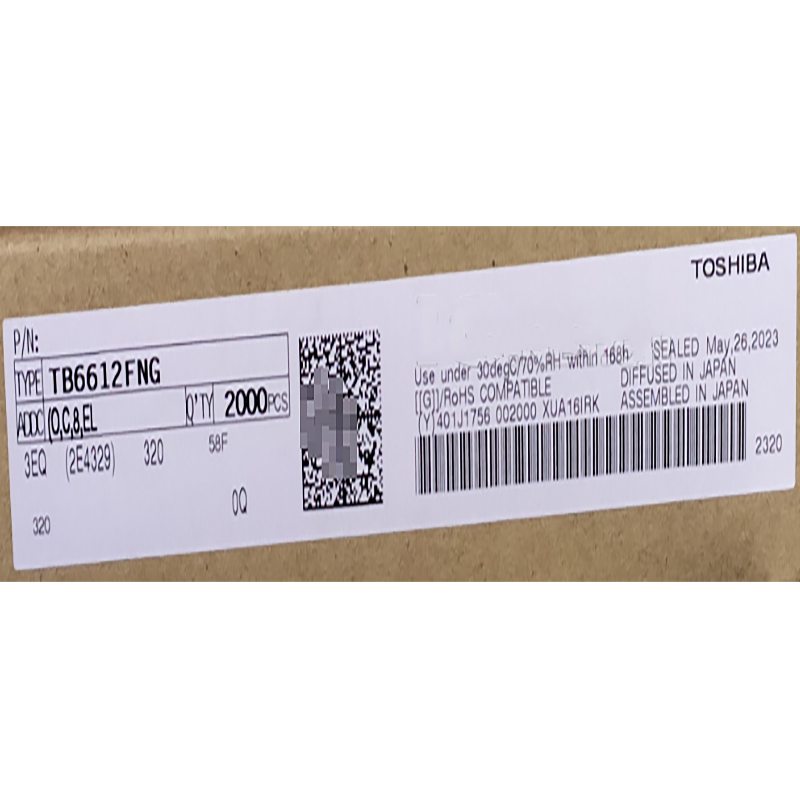

| Packaging / pack quantity | Tape & reel / 2,000 pcs |
|---|---|
| Product status | Please contact us to confirm |
| Motor supply voltage | 2.5 V to 13.5 V |
| Logic supply voltage | 2.7 V to 5.5 V |
| PWM frequency | Up to 100 kHz |
| Operating temperature | −20°C to 85°C |
