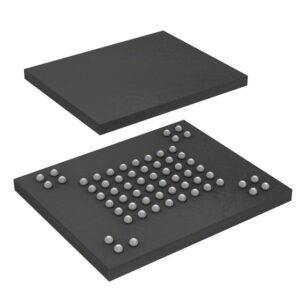

MX30LF4G28AD-XKI
4Gbit SLC NAND Flash memory with x8 organization, an 8-bit ECC requirement, 3V operation and a 63-VFBGA package.
Key details
| Part Number | MX30LF4G28AD-XKI |
|---|---|
| Manufacturer | Macronix |
| Category | SLC NAND Flash |
| Lifecycle Status | Production |
| Series | MX30LF4G28AD |
| Package / Case | 63-VFBGA (9 × 11 mm, 0.8 mm pitch) |
| Pin Count | 63 |
| Operating Temperature | -40°C to +85°C |
| Last Verified | 2026-07-15 |
Part information
MX30LF4G28AD-XKI overview
MX30LF4G28AD-XKI is a 4Gbit SLC NAND Flash device organized as x8 and designed for 2.7V to 3.6V operation. The exact -XKI code specifies the industrial-temperature 63-VFBGA package with a 0.8 mm ball pitch.
This generation requires host-side 8-bit ECC and uses a 4,096-byte data area plus a 256-byte spare area per page. These details can affect controller support, bad-block management and firmware, so they should be checked at the exact part-number level rather than inferred from another MX30LF4G device.
Key technical specifications
| Density | 4 Gb |
|---|---|
| Memory type | SLC NAND Flash |
| Organization | x8 |
| Supply voltage | 2.7V–3.6V |
| ECC requirement | 8-bit ECC |
| Page size | 4,096 + 256 bytes |
| Package | 63-VFBGA, 9 × 11 mm |
| Operating temperature | -40°C to +85°C |
Sourcing review
Before an order is approved, confirm controller compatibility, ECC implementation, page and spare-area handling, package, qualification, date-code limits and traceability. Availability and lead time are established during the RFQ review.
MX30LF4G28AD-XKI selection and design context
MX30LF4G28AD-XKI is cataloged as a SLC NAND Flash in the MX30LF4G28AD family. Its recorded function is 4Gbit SLC NAND Flash memory with x8 organization, an 8-bit ECC requirement, 3V operation and a 63-VFBGA package.. Selection should be based on the complete electrical limits, package drawing and ordering suffix rather than the abbreviated family code.
- Density: 4 Gb. Confirm address organization, software support and required usable capacity.
- Memory type: SLC NAND Flash. Confirm address organization, software support and required usable capacity.
- Organization: x8. Confirm address organization, software support and required usable capacity.
- Supply voltage: 2.7V–3.6V. Check rail compatibility, tolerance and sequencing under worst-case conditions.
Application and qualification considerations
When evaluating this memory device, confirm density, organization, interface mode, supply rails, access or clock timing, erase endurance and software command compatibility. For a new design, review power-up behavior, interface timing, absolute maximum ratings, thermal limits and any external-component requirements in the latest manufacturer documentation. Existing-board replacement work should additionally confirm pinout, footprint, firmware assumptions and qualification grade.
Procurement checks for MX30LF4G28AD-XKI
The recorded package is 63-VFBGA (9 × 11 mm, 0.8 mm pitch), the temperature range is -40°C to +85°C, and the lifecycle status is Production as of 20260715. Before ordering, confirm the exact MPN on the label, packing format, quantity, date-code requirements, traceability documents and current factory status.
MX30LF4G28AD-XKI FAQ
What distinguishes MX30LF4G28AD-XKI within the MX30LF4G28AD family?
MX30LF4G28AD-XKI is the exact orderable code for a 4Gbit SLC NAND Flash memory with x8 organization, an 8-bit ECC requirement, 3V operation and a 63-VFBGA package. in 63-VFBGA (9 × 11 mm, 0.8 mm pitch). Related MX30LF4G28AD devices may change package, rating, interface option or qualification grade, so compare the manufacturer ordering table before substitution.
What package and footprint checks are required for MX30LF4G28AD-XKI?
MX30LF4G28AD-XKI is recorded in 63-VFBGA (9 × 11 mm, 0.8 mm pitch) with 63 pins, leads or contacts. Confirm the manufacturer package drawing, dimensions, pin numbering, exposed-pad requirements and packing suffix before releasing a PCB footprint.
Which specifications should be verified when selecting MX30LF4G28AD-XKI?
Density is recorded as 4 Gb, Memory type is recorded as SLC NAND Flash. Use the latest datasheet for minimum and maximum limits, test conditions, timing and absolute maximum ratings rather than relying only on a distributor summary.
What is the lifecycle status of MX30LF4G28AD-XKI?
MX30LF4G28AD-XKI was recorded as Production when verified on 20260715. Reconfirm factory status, revision availability, lead time and any last-time-buy notice before design-in or volume procurement.
What information should be included in an RFQ for MX30LF4G28AD-XKI?
Provide the complete MX30LF4G28AD-XKI orderable code, target quantity, acceptable date-code range, required packing method, delivery destination and documentation needs. For replacement work, also identify the existing package and any mandatory qualification grade.
Lifecycle and sourcing review
Lifecycle information is shown for reference. Confirm current manufacturer documentation, availability and technical suitability before purchase.
Confirm the host ECC implementation, page and spare-area handling, package, firmware behavior, date code and qualification requirements before order placement.
